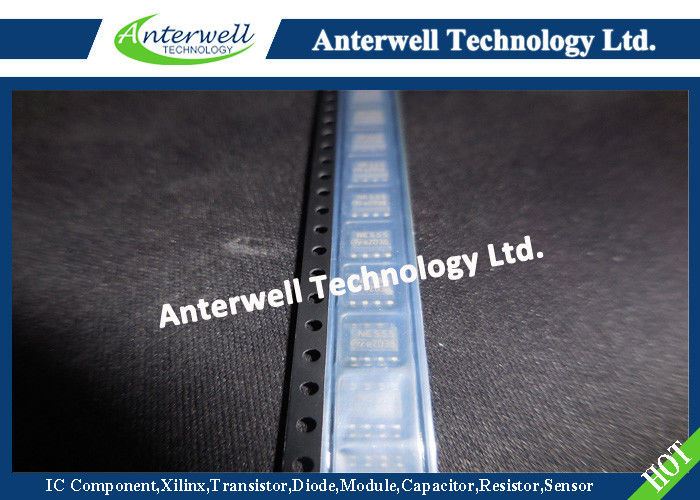

NE555DT Precision Timer Ic Chip , Common Counter Ic electronic chips

NE555DT Precision Timer Ic Chip , Common Counter Ic electronic chips

►
Timing From Microseconds to Hours

►
Astable or Monostable Operation

►
 Adjustable Duty Cycle

►
TTL-Compatible Output Can Sink or Source up to 200 mA

►
Functionally Interchangeable With the Signetics NE555, SA555, SE555, SE555C; Have Same Pinout

description

These devices are precision monolithic timing circuits capable of producing accurate time delays or oscillation. In the time-delay or monostable mode of operation, the timed interval is controlled by a single external resistor and capacitor network. In the astable mode of operation, the frequency and duty cycle may be independently controlled with two external resistors and a single external capacitor.

The threshold and trigger levels are normally two-thirds and one-third, respectively, of VCC. These levels can be altered by use of the control voltage terminal. When the trigger input falls below the trigger level, the flip-flop is set and the output goes high. If the trigger input is above the trigger level and the threshold input is above the threshold level, the flip-flop is reset and the output is low. RESET can override all other inputs and can be used to initiate a new timing cycle. When RESET goes low, the flip-flop is reset and the output goes low. Whenever the output is low, a low-impedance path is provided between DISCH and ground.

The output circuit is capable of sinking or sourcing current up to 200 mA. Operation is specified for supplies of 5 V to 15 V. With a 5-V supply, output levels are compatible with TTL inputs.

The NE555 is characterized for operation from 0°C to 70°C. The SA555 is characterized for operation from –40°C to 85°C. The SE555 and SE555C are characterized for operation over the full military range of –55°C to 125°C.

functional block diagram
