SPW47N60C3 Power Mosfet Transistor Cool MOS™ Power Transistor

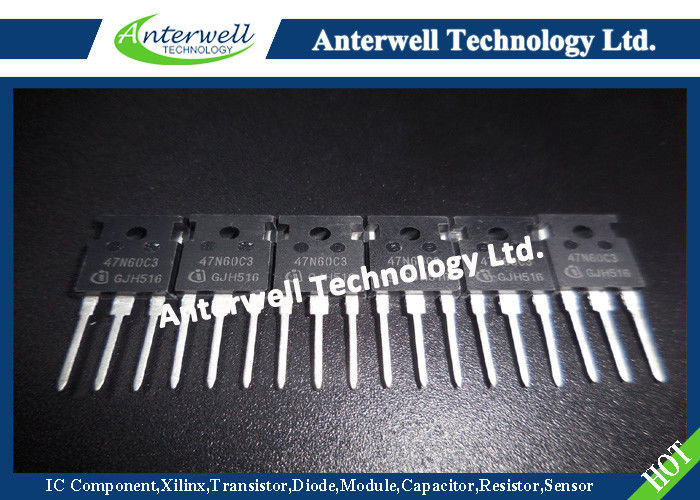

: Large Image : SPW47N60C3 Power Mosfet Transistor Cool MOS™ Power Transistor

Product Details:

Place of Origin:	original factory
Brand Name:	Anterwell
Certification:	new & original
Model Number:	SPW47N60C3

Payment & Shipping Terms:

Minimum Order Quantity:	20pcs
Price:	Negotiate
Packaging Details:	Please contact me for details
Delivery Time:	1 day
Payment Terms:	T/T, Western Union, Paypal
Supply Ability:	8800pcs

Contact Now

Detailed Product Description

Drain-source Breakdown Voltage:	600 V	Drain-Source Avalanche Breakdown Voltage:	700 V
Gate Threshold Voltage:	3 V	Gate-source Leakage Current:	100 NA
Gate Input Resistance:	0.62 Ω	Input Capacitance:	6800 PF
Output Capacitance:	2200 PF	Reverse Transfer Capacitance:	145 PF
High Light:	power mosfet ic , multi emitter transistor

SPW47N60C3 Cool MOS^TM Power Transistor

Feature

• New revolutionary high voltage technology

• Worldwide best R_DS(on) in TO 247

• Ultra low gate charge

• Periodic avalanche rated

• Extreme dv/dt rated

• Ultra low effective capacitances

Maximum Ratings

Parameter	Symbol	Value	Unit
Continuous drain current T_C = 25 °C T_C = 100 °C	I_D	47 30	A
Pulsed drain current, t_p limited by T_jmax	I_{D puls}	141	A
Avalanche energy, single pulse I_D = 10 A, V_DD = 50 V	E_AS	1800	mJ
Avalanche energy, repetitive t_AR limited by T_jmax¹) I_D = 20 A, V_DD = 50 V	E_AR	1	mJ
Avalanche current, repetitive t_AR limited by T_jmax	I_AR	20	A
Gate source voltage static	V_GS	±20	V
Gate source voltage AC (f >1Hz)	V_GS	±30	V
Power dissipation, T_C = 25°C	P_tot	415	W
Operating and storage temperature	Tj , Tstg	-55... +150	°C
Drain Source voltage slope V_DS = 480 V, I_D = 47 A, T_j = 125 °C	dv/dt	50	V/ns

1 Repetitve avalanche causes additional power losses that can be calculated as PAV=EAR*f.

P-TO-247-3-1
