2SA940 Silicon PNP Power Transistors General Purpose Transistor NPN

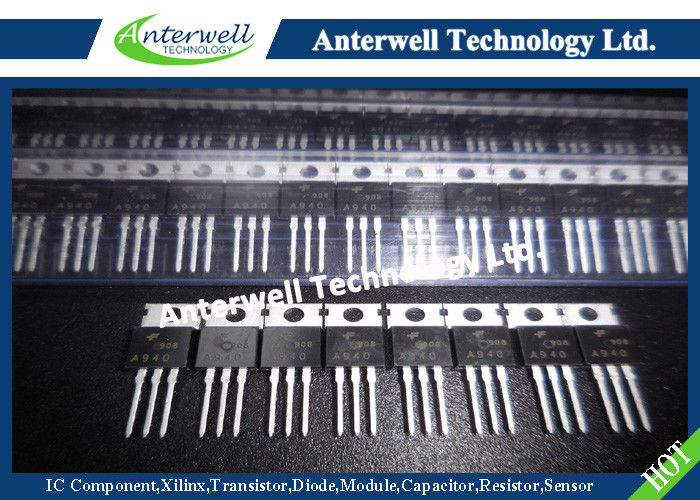

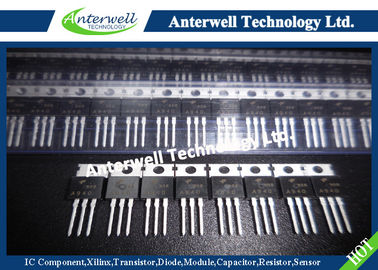

: Large Image : 2SA940 Silicon PNP Power Transistors General Purpose Transistor NPN

Product Details:

Place of Origin:	original factory
Brand Name:	Anterwell
Certification:	new & original
Model Number:	2SA940

Payment & Shipping Terms:

Minimum Order Quantity:	20pcs
Price:	Negotiate
Packaging Details:	Please contact me for details
Delivery Time:	1 day
Payment Terms:	T/T, Western Union, Paypal
Supply Ability:	7600pcs

Contact Now

Detailed Product Description

Collector-base Voltage:	-150 V	Collector-emitter Voltage:	-150 V
Emitter-base Voltage:	-5 V	Collector Current (DC):	-1.5 A
Base Current:	-0.5 A	Junction Temperature:	150 ℃
Highlight:	multi emitter transistor , silicon power transistors

Silicon PNP Power Transistors 2SA940

DESCRIPTION

·With TO-220 package

·Complement to type 2SC2073

APPLICATIONS

·Power amplifier applications

·Vertical output applications

Absolute maximum ratings (Ta=25℃)

SYMBOL	PARAMETER	CONDITIONS	VALUE	UNIT
V_CBO	Collector-base voltage	Open emitter	-150	V
V_CEO	Collector-emitter voltage	Open base	-150	V
V_EBO	Emitter-base voltage	Open collector	-5	V
I_C	Collector current (DC)		-1.5	A
I_B	Base current		-0.5	A
P_C	Collector power dissipation	Ta=25℃	1.5	W
P_C	Collector power dissipation	T_C=25℃	25	W
T_j	Junction temperature		150	℃
Tstg	Storage temperature		-55~150	℃

2SA940 Silicon PNP Power Transistors General Purpose Transistor NPN

PACKAGE OUTLINE

2SA940 Silicon PNP Power Transistors General Purpose Transistor NPN
