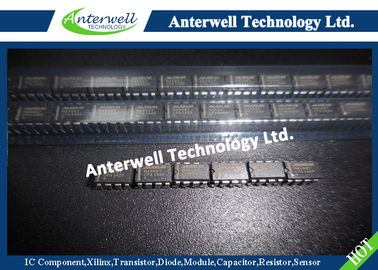

MAX667CPA+ WR Electronic Component Electronic Ic Chip Color TV Ic chip ic diode

MAX690CPA+ WR Electronic Component Electronic Ic Chip Color TV Ic chip ic diode
3-V TO 5.5-V MULTICHANNEL RS-232 LINE DRIVER/RECEIVER WITH +-15-kV ESD PROTECTION

FEATURES:
♦ 350mV Max Dropout at 200mA
♦ 250mA Output Current
♦ Normal Mode: 20µA Typ Quiescent Current Shutdown Mode: 0.2µA Typ Quiescent Current
♦ Low-Battery Detector
♦ Fixed +5V (Min Component Count) or Adjustable Output
♦ +3.5V to +16.5V Input
♦ Dropout Detector Output
♦ 10µF Output Capacitor

General Description
        The MAX667 low-dropout, positive, linear voltage regulator supplies up to 250mA of output current. With no load, it has a typical quiescent current of 20µA. At 200mA of output current, the input/output voltage differential is typically 150mV.

        Other features include a lowvoltage detector to indicate power failure, as well as early-warning and low-dropout detectors to indicate an imminent loss of output voltage regulation. A shutdown control disables the output and puts the circuit into a low quiescent-current mode.

        The MAX667 employs Dual Mode™ operation. One mode uses internally trimmed feedback resistors to produce +5V. In the other mode, the output may be varied from +1.3V to +16V by connecting two external resistors.

        The MAX667 is a pin-compatible upgrade to the MAX666 in most applications where the input voltages are above +3.5V. Choose the MAX667 when high output currents and/or low dropout voltages are desired, as well as for improved performance at higher temperatures.
