EE-SX1131 Electronics Components Ultra Compact Photomicrosensors

: Large Image : EE-SX1131 Electronics Components Ultra Compact Photomicrosensors

Product Details:

Place of Origin:	original factory
Brand Name:	Anterwell
Certification:	new & original
Model Number:	EE-SX1131

Payment & Shipping Terms:

Minimum Order Quantity:	10pcs
Price:	Negotiate
Packaging Details:	Please contact me for details
Delivery Time:	1 day
Payment Terms:	T/T, Western Union, Paypal
Supply Ability:	6300pcs

Contact Now

Detailed Product Description

Forward Current:	25 MA	Pulse Forward Current:	100 MA
Reverse Voltage:	5 V	Collector-emitter Voltage:	20 V
Emitter-collector Voltage:	5 V	Collector Dissipation:	75 MW
Highlight:	chip in electronics , integrated components

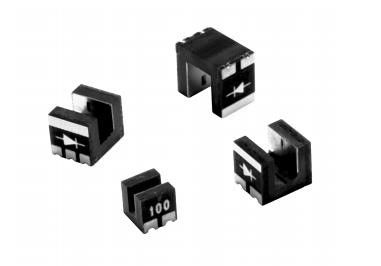

EE-SX1107/1108/1109/1131

Ultra-Compact Photomicrosensors with Surface-Mount Design

■ Surface mount design, and tape and reel packaging facilitate automated PCB assembly

■ Compact size makes these sensors ideal for use in applications with restricted space

■ High-resolution sensing with phototransistor output

■ Dual channel model that is ideal for encoder applications (EE-SX1131)

ABSOLUTE MAXIMUM RATING (TA=25°C)

Item		Symbol	Rated value
Emitter	Forward current	I_F	25 mA (see note)
	Pulse forward current	I_FP	100 mA (duty: 1/100, pulse width: 0.1 ms)
	Reverse voltage	V_R	5 V
Detector	Collector-emitter voltage	V_CEO	20 V
	Emitter-collector voltage	V_ECO	5 V
	Collector current	I_C	20 mA
	Collector dissipation	P_C	75 mW (see note)
Ambient temperature	Operating	T_opr	-30° to 85°C
	Storage	T_stg	-40° to 90°C
	Soldering (manual)	T_sol	300°C (3 second max.)
	Soldering (reflow)	T_sol	240°C (10 second max)

Note: Refer to Engineering Data if the ambient temperature is not within the normal room temperature range.
