Product Details:
Payment & Shipping Terms:
|
| Output Voltage: | 5.0 V | Quiescent Current: | 5.0 MA |
|---|---|---|---|
| Peak Current: | 2.2 A | Short Circuit Current: | 230 MA |
| Operating Temperature: | 0 To +125 °C | Storage Temperature: | -65 To +150 °C |
| Highlight: | multi emitter transistor,silicon power transistors |
||

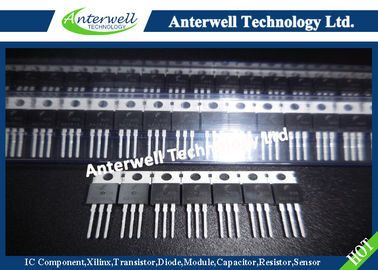

KA78XXE/KA78XXAE
3-Terminal 1A Positive Voltage Regulator
Features
• Output Current up to 1A
• Output Voltages of 5, 6, 8, 9, 10, 12, 15, 18, 24V
• Thermal Overload Protection
• Short Circuit Protection
• Output Transistor Safe Operating Area Protection
General Description
The KA78XXE/KA78XXAE series of three-terminal positive regulator are available in the TO-220/D-PAK package and with several fixed output voltages, making them useful in a wide range of applications. Each type employs internal current limiting, thermal shut down and safe operating area protection, making it essentially indestructible. If adequate heat sinking is provided, they can deliver over 1A output current. Although designed primarily as fixed voltage regulators, these devices can be used with external components to obtain adjustable voltages and currents.
Absolute Maximum Ratings
| Symbol | Parameter | Value | Unit | |
| VI | Input Voltage | VO = 5V to 18V | 35 | V |
| VO = 24V | 40 | |||
| RθJC | Thermal Resistance Junction-Cases (TO-220) | 5 | °C/W | |
| RθJA | Thermal Resistance Junction-Air (TO-220) | 65 | °C/W | |
| TOPR | Operating Temperature Range (KA78XXE/AE/ER) | 0 to +125 | °C | |
| TSTG | Storage Temperature Range | -65 to +150 | °C | |
Block Diagram
Pin Assignment
