KA7912TU 3 Pin Transistor 3- Terminal 1 A Negative Voltage Regulator

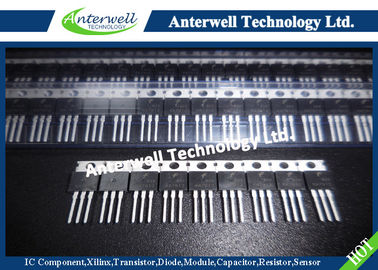

: Large Image : KA7912TU 3 Pin Transistor 3- Terminal 1 A Negative Voltage Regulator

Product Details:

Place of Origin:	original factory
Brand Name:	Anterwell
Certification:	new & original
Model Number:	KA7912TU

Payment & Shipping Terms:

Minimum Order Quantity:	20pcs
Price:	Negotiate
Packaging Details:	Please contact me for details
Delivery Time:	1 day
Payment Terms:	T/T, Western Union, Paypal
Supply Ability:	7300pcs

Contact Now

Detailed Product Description

Output Voltage:	-5.0 V	Quiescent Current:	3 MA
Temperature Coefficient Of VD:	-0.4 MV/°C	Output Noise Voltage:	40 μV
Ripple Rejection:	60 DB	Dropout Voltage:	2 V
Short-Circuit Current:	300 MA	Peak Current:	2.2 A
Highlight:	npn smd transistor , multi emitter transistor

KA7912TU 3 Pin Transistor 3- Terminal 1 A Negative Voltage Regulator

Features

• Output Current in Excess of 1 A

• Output Voltages of: -5 V, -6 V, -8 V, -9 V, -12 V, -15 V, -18 V, -24 V

• Internal Thermal Overload Protection

• Short-Circuit Protection

• Output Transistor Safe Operating Area Compensation

Description

The KA79XX / KA79XXA / LM79XX series of three-terminal negative regulators are available in a TO-220 package with several fixed output voltages, making them useful in a wide range of applications. Each type employs internal current limiting, thermal shutdown, and safe operating area protection.

Absolute Maximum Ratings

Stresses exceeding the absolute maximum ratings may damage the device. The device may not function or be operable above the recommended operating conditions and stressing the parts to these levels is not recommended. In addition, extended exposure to stresses above the recommended operating conditions may affect device reliability. The absolute maximum ratings are stress ratings only. Values are at T_A = 25°C unless otherwise noted.

Symbol	Parameter	Value	Unit
V_I	Input Voltage	-35	V
R_θJC	Thermal Resistance, Junction-Case⁽¹⁾	5	°C/W
R_θJA	Thermal Resistance, Junction-Air^{(1, 2)}	65	°C/W
T_OPR	Operating Temperature Range	0 to +125	°C
T_STG	Storage Temperature Range	- 65 to +150	°C

Notes:

1. Thermal resistance test board, size: 76.2 mm x 114.3 mm x 1.6 mm(1S0P), JEDEC standard: JESD51-3, JESD51-7.

2. Assume no ambient airflow

KA7912TU 3 Pin Transistor 3- Terminal 1 A Negative Voltage Regulator

Block Diagram

KA7912TU 3 Pin Transistor 3- Terminal 1 A Negative Voltage Regulator
