TIP120 Power Mosfet Transistor Complementary Silicon Transistors

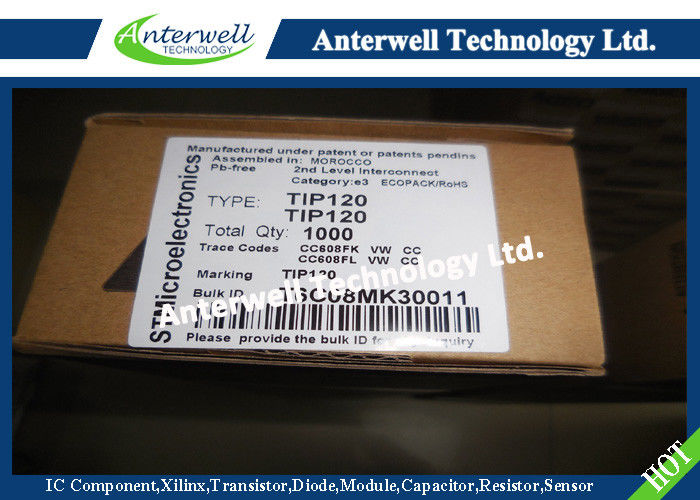

: Large Image : TIP120 Power Mosfet Transistor Complementary Silicon Transistors

Product Details:

Place of Origin:	original factory
Brand Name:	Anterwell
Certification:	new & original
Model Number:	TIP120

Payment & Shipping Terms:

Minimum Order Quantity:	10pcs
Price:	Negotiate
Packaging Details:	Please contact me for details
Delivery Time:	1 day
Payment Terms:	T/T, Western Union, Paypal
Supply Ability:	8600pcs

Contact Now

Detailed Product Description

Collector-Base Voltage:	60 V	Collector-Emitter Voltage:	60 V
Emitter-Base Voltage:	5 V	Collector Current (DC):	5 A
Collector Current (Pulse):	8 A	Base Current (DC):	120 MA
Highlight:	multi emitter transistor , silicon power transistors

TIP120/121/122

Medium Power Linear Switching Applications

• Complementary to TIP125/126/127

NPN Epitaxial Darlington Transistor

TIP120 Power Mosfet Transistor Complementary Silicon Transistors

Absolute Maximum Ratings T_C=25°C unless otherwise noted

Symbol	Parameter	Value	Units
V_CBO	Collector-Base Voltage : TIP120 : TIP121 : TIP122	60 80 100	V V V
V_CEO	Collector-Emitter Voltage : TIP120 : TIP121 : TIP122	60 80 100	V V V
V_EBO	Emitter-Base Voltage	5	V
I_C	Collector Current (DC)	5	A
I_CP	Collector Current (Pulse)	8	A
I_B	Base Current (DC)	120	mA
P_C	Collector Dissipation (Ta=25°C)	2	W
P_C	Collector Dissipation (T_C=25°C)	65	W
T_J	Junction Temperature	150	°C
T_STG	Storage Temperature	- 65 ~ 150	°C

Typical characteristics

TIP120 Power Mosfet Transistor Complementary Silicon Transistors

Package Demensions

TIP120 Power Mosfet Transistor Complementary Silicon Transistors
