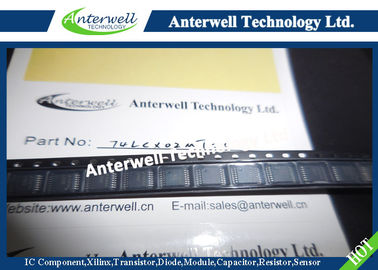

74LCX02MTCX Low Voltage Quad 2-Input NOR Gate with 5V Tolerant Inputs holt integrated circuits

74LCX02MTCX Low Voltage Quad 2-Input NOR Gate with 5V Tolerant Inputs holt integrated circuits

Features

■ 5V tolerant inputs

■ 2.3V–3.6V VCC specification provided

■ 5.2 ns tPD max (VCC = 3.3V), 10 µA ICC max

■ Power down high impedance inputs and outputs

■ ±24 mA output drive (VCC = 3.0V)

■ Implements patented noise/EMI reduction circuitry

■ Latch-up performance exceeds 500 mA

■ ESD performance: Human body model > 2000V Machine model > 200V

General Description

The LCX02 contains four 2-input NOR gates. The inputs tolerate voltages up to 7V allowing the interface of 5V systems to 3V systems. The 74LCX02 is fabricated with advanced CMOS technology to achieve high speed operation while maintaining CMOS low power dissipation.

AC Loading and Waveforms Generic for LCX Family
