Product Details:
Payment & Shipping Terms:
|
| Collector-base Voltage: | 1500 V | Collector-emitter Voltage: | 600 V |
|---|---|---|---|
| Emitter-base Voltage: | 5 V | Collector Current: | 6 A |
| Collector Current-peak: | 12 A | Base Current: | 3 A |
| Highlight: | npn smd transistor,silicon power transistors |
||

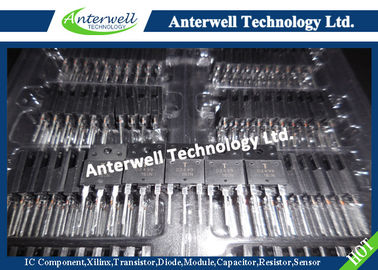

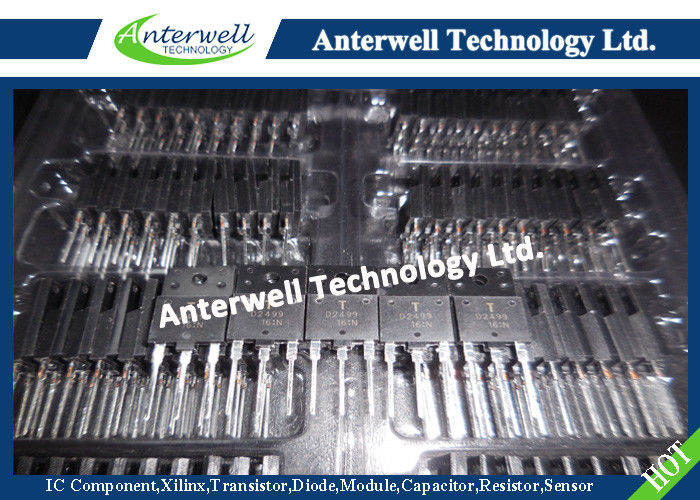

Silicon NPN Power Transistors 2SD2499
DESCRIPTION
·With TO-3P(H)IS package
·High voltage;high speed
·Low saturation voltage
·Bult-in damper diode
APPLICATIONS
·Horizontal deflection output for color TV
Absolute maximum ratings(Ta=25℃)
| SYMBOL | PARAMETER | CONDITIONS | VALUE | UNIT |
|---|---|---|---|---|
| VCBO | Collector-base voltage | Open emitter | 1500 | V |
| VCEO | Collector-emitter voltage | Open base | 600 | V |
| VEBO | Emitter-base voltage | Open collector | 5 | V |
| IC | Collector current | 6 | A | |
| ICM | Collector current-peak | 12 | A | |
| IB | Base current | 3 | A | |
| PC | Total power dissipation | TC=25℃ | 50 | W |
| Tj | Junction temperature | 150 | ℃ | |
| Tstg | Storage temperature | -55~150 | ℃ |
PINNING
| PIN | DESCRIPTION |
|---|---|
| 1 | Base |
| 2 | Collector |
| 3 | Emitter |
PACKAGE OUTLINE
