FAN8303MX Ic Electronic Components Chips Non-Synchronous Step-Down DC/DC Regulator

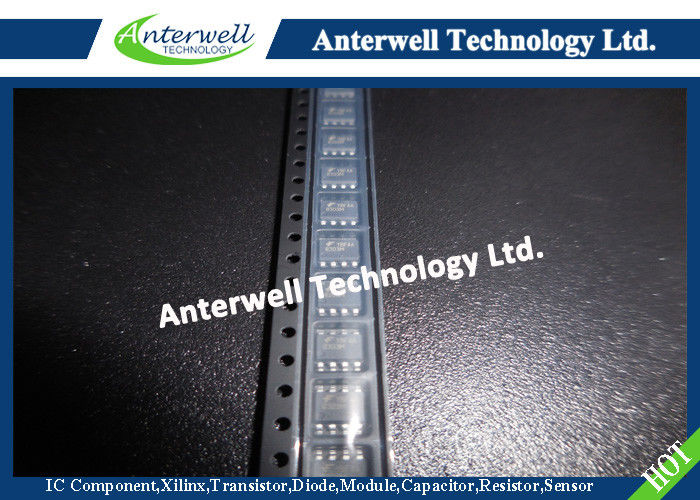

: Large Image : FAN8303MX Ic Electronic Components Chips Non-Synchronous Step-Down DC/DC Regulator

Product Details:

Place of Origin:	original factory
Brand Name:	Anterwell
Certification:	new & original
Model Number:	FAN8303MX

Payment & Shipping Terms:

Minimum Order Quantity:	10pcs
Price:	Negotiate
Packaging Details:	Please contact me for details
Delivery Time:	1 day
Payment Terms:	T/T, Western Union, Paypal
Supply Ability:	8000pcs

Contact Now

Detailed Product Description

Supply Voltage, VIN To GND:	25 V	Switch Voltage, SW To GND:	-0.3 To Vin+0.3 V
Boost Voltage:	Vsw + 6 V	Feedback Voltage:	-0.3 To 6.0 V
Operating Junction Temperature:	-40 To +125 °C	Storage Temperature:	-65 To +150 °C
Highlight:	electronic integrated circuit , linear integrated circuits

FAN8303

2A 23V Non-Synchronous Step-Down DC/DC Regulator

Features

2A Output Current
0.22Ω Internal Power MOSFET Switch
Wide 5V to 23V Operating Input Range
Output Adjustable from 0.6 to 20V
Stable with Low ESR Output Ceramic Capacitors
Up to 90% Efficiency
Less than 40µA Shutdown Current
Fixed 370kHz Frequency
Thermal Shutdown with Hysteresis
Cycle-by-Cycle Over-Current Protection
Available in 8-Pin SOIC Package

Applications

Set-Top Box
DSL and Cable Modems
Distributed Power Systems
Consumer Appliances (DVD)
Auxiliary supplies

Description

The FAN8303 is a monolithic, non-synchronous, stepdown (buck) regulator with internal power MOSFETs. It achieves 2A continuous output current over a wide input supply range with excellent load and line regulation. Current-mode operation provides fast transient response and eases loop stabilization. Fault condition protection includes cycle-by-cycle current limiting and thermal shutdown. The regulator draws less than 40µA shutdown current. FAN8303 requires a minimum number of readily available standard external components.

External compensation, enable, and programmable soft-start features allow design optimization and flexibility. Cycle-by-cycle current limit, frequency foldback, and thermal shutdown provide protection against shorted outputs.

FAN8303MX Ic Electronic Components Chips Non-Synchronous Step-Down DC/DC Regulator

Absolute Maximum Ratings

Stresses exceeding the absolute maximum ratings may damage the device. The device may not function or be operable above the recommended operating conditions and stressing the parts to these levels is not recommended. In addition, extended exposure to stresses above the recommended operating conditions may affect device reliability. The absolute maximum ratings are stress ratings only. All voltage values, except differential voltages, are given with respect to the network ground terminal. Stresses beyond those listed under Absolute Maximum Ratings may cause permanent damage to the device

Symbol	Parameter		Min.	Max.	Unit
V_IN	Supply Voltage, VIN to GND			25	V
V_SW	Switch Voltage, SW to GND		-0.3	V_IN+0.3	V
V_BS	Boost Voltage			V_SW + 6	V
V_FB	Feedback Voltage		-0.3	6.0	V
V_EN	Enable Voltage		-0.3	6.0	V
V_COMP	Compensation Voltage		-0.3	6.0	V
V_SS	Soft-Start Voltage		-0.3	6.0	V
Θ_JA	Thermal Resistance, Junction-Air			105	°C/W
Θ_JC	Thermal Resistance, Junction-Case			40	°C/W
T_J	Operating Junction Temperature		-40	+125	°C
T_L	Lead Temperature (Soldering, 5 Seconds)			+260	°C
T_STG	Storage Temperature Range		-65	+150	°C
ESD	Electrostatic Discharge Protection Level	Human Body Model, JEDEC JESD22-A114	3.0		kV
ESD	Electrostatic Discharge Protection Level	Charged Device Model, JEDEC JESD22- C101	2.5		kV
