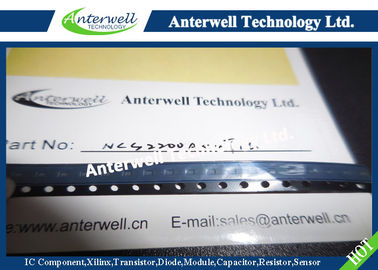

NCS2200AMUT1G Low Voltage Comparators smd led circuit board printed circuit board

NCS2200AMUT1G Low Voltage Comparators smd led circuit board printed circuit board

Features

• Operating Voltage of 0.85 V to 6.0 V

• Rail−to−Rail Input/Output Performance

• Low Supply Current of 10 A

• No Phase Inversion with Overdriven Input Signals

• Glitchless Transitioning in or out of Tri−State Mode

• Complementary or Open Drain Output Configuration

• Available with the Enable Function

• Internal Hysteresis

• Propagation Delay of 1.1 s

• Pb−Free Packages are Available

The NCS2200 Series is an industry first sub−one volt, low power comparator family. These devices consume only 10 A of supply current. They are guaranteed to operate at a low voltage of 0.85 V which allows them to be used in systems that require less than 1.0 V and are fully operational up to 6.0 V which makes them convenient for use in both 3.0 V and 5.0 V systems. Additional features include no output phase inversion with overdriven inputs, internal hysteresis, which allows for clean output switching, and rail−to−rail input and output performance. The NCS2200 Series is available in the tiny SOT−23−5 and SOT−23−6 package. There are eight options featuring two industry standard pinouts. Additionally, the NCS2200 and NCS2202 are available in the SC70−5 package. The NCS2200 is also available in the tiny DFN 2x2.2 package. The NCS2200A is available in UDFN 1.2x1.0 package. (Table 1)

The NCS2201/3 Series in the SOT−23−6 package features an enable function, which can be externally controlled. When the enable pin is pulled low (output tri−state mode), current consumption is typically 0.3 A. This allows the user to implement these devices in power sensitive applications such as portable electronics.
