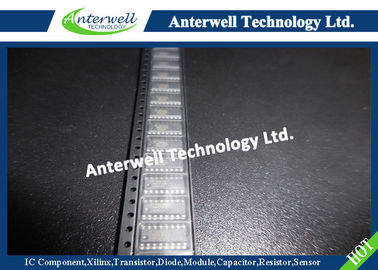

MM74HC4060M Integrated Circuit Chips 14 Stage Binary Counter

MM74HC4060

14 Stage Binary Counter

General Description

The MM74HC4060 is a high speed binary ripple carry counter. These counters are implemented utilizing advanced silicon-gate CMOS technology to achieve speed performance similar to LS-TTL logic while retaining the low power and high noise immunity of CMOS.

The MM74HC4060 is a 14-stage counter, which device increments on the falling edge (negative transition) of the input clock, and all their outputs are reset to a low level by applying a logical high on their reset input. The MM74HC4060 also has two additional inputs to enable easy connection of either an RC or crystal oscillator.

This device is pin equivalent to the CD4060. All inputs are protected from damage due to static discharge by protection diodes to VCC and ground.

Features

■ Typical propagation delay: 16 ns

■ Wide operating voltage range: 2–6V

■ Low input current: 1 µA maximum

■ Low quiescent current: 80 µA maximum (74 Series)

■ Output drive capability: 10 LS-TTL loads

Connection Diagram

Absolute Maximum Ratings(Note 1) (Note 2)

Supply Voltage (V_CC)                                             −0.5 to +7.0V

DC Input Voltage (V_IN)                                    −1.5 to V_CC +1.5V

DC Output Voltage (V_OUT)                              −0.5 to V_CC +0.5V

Clamp Diode Current (I_CD)                                              ±20 mA

DC Output Current, per pin (I_OUT)                                   ±25 mA

DC VCC or GND Current, per pin (I_CC)                            ±50 mA

Storage Temperature Range (T_STG)                 −65°C to +150°C

Power Dissipation (P_D)

    (Note 3)                                                                       600 mW

    S.O. Package only                                                      500 mW

Lead Temperature (T_L) (Soldering 10 seconds)               260°C

Note 1: Maximum Ratings are those values beyond which damage to the device may occur.

Note 2: Unless otherwise specified all voltages are referenced to ground.

Note 3: Power Dissipation temperature derating: plastic “N” package: −12 mW/°C from 65°C to 85°C.
