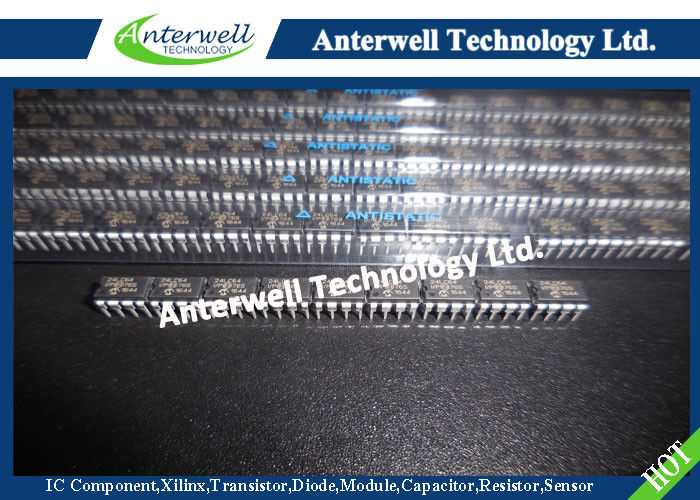

24LC64-I-P 64K Programmable IC Chips EEPROM linear digital integrated circuits

24LC64-I-P 64K I2C™ Serial EEPROM linear digital integrated circuits

Features

• Single supply with operation down to 1.8V

• Low-power CMOS technology

- 1 mA active current typical

- 1 µA standby current (max.) (I-temp)

• Organized as 8 blocks of 8K bit (64K bit)

• 2-wire serial interface bus, I2C™ compatible

• Cascadable for up to eight devices

• Schmitt Trigger inputs for noise suppression

• Output slope control to eliminate ground bounce

• 100 kHz (24AA64) and 400 kHz (24LC64) compatibility

• Self-timed write cycle (including auto-erase)

• Page write buffer for up to 32 bytes

• 2 ms typical write cycle time for page write

• Hardware write-protect for entire memory

• Can be operated as a serial ROM

• Factory programming (QTP) available

• ESD protection > 4,000V

• 1,000,000 erase/write cycles

• Data retention > 200 years

• 8-lead PDIP, SOIC, TSSOP and MSOP packages

• Standard and Pb-free finishes available

• Available temperature ranges: - Industrial (I):

-40°C to +85°C - Automotive (E): -40°C to +125°C

Description The Microchip Technology Inc. 24AA64/24LC64 (24XX64*) is a 64 Kbit Electrically Erasable PROM. The device is organized as eight blocks of 1K x 8-bit memory with a 2-wire serial interface. Low-voltage design permits operation down to 1.8V, with standby and active currents of only 1 µA and 1 mA, respectively. It has been developed for advanced, lowpower applications such as personal communications or data acquisition. The 24XX64 also has a page write capability for up to 32 bytes of data. Functional address lines allow up to eight devices on the same bus, for up to 512 Kbits address space. The 24XX64 is available in the standard 8-pin PDIP, surface mount SOIC, TSSOP and MSOP packages.
