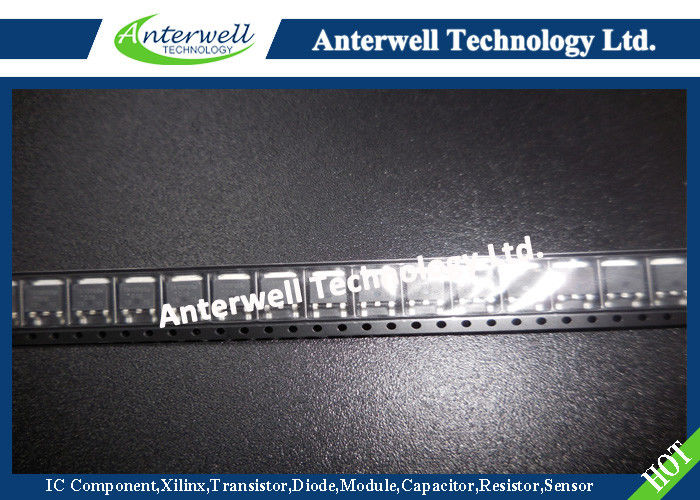

TK10P60W Power Mosfet Transistor MOSFETs Silicon N-Channel MOS

: Large Image : TK10P60W Power Mosfet Transistor MOSFETs Silicon N-Channel MOS

Product Details:

Place of Origin:	original factory
Brand Name:	Anterwell
Certification:	new & original
Model Number:	TK10P60W

Payment & Shipping Terms:

Minimum Order Quantity:	20pcs
Price:	Negotiate
Packaging Details:	Please contact me for details
Delivery Time:	1 day
Payment Terms:	T/T, Western Union, Paypal
Supply Ability:	10000pcs

Contact Now

Detailed Product Description

Drain-source Voltage:	600 V	Gate-source Voltage:	±30 V
Drain Current (DC):	9.7 A	Drain Current (pulsed):	38.8 A
Power Dissipation:	80 W	Single-pulse Avalanche Energy:	121 MJ
Highlight:	multi emitter transistor , silicon power transistors

MOSFETs Silicon N-Channel MOS (DTMOS)

TK10P60W

Applications

• Switching Voltage Regulators

Features

(1) Low drain-source on-resistance: R_DS(ON) = 0.327 Ω (typ.)

by used to Super Junction Structure : DTMOS

(2) Easy to control Gate switching

(3) Enhancement mode: V_th = 2.7 to 3.7 V (V_DS = 10 V, I_D = 0.5 mA)

Packaging and Internal Circuit

TK10P60W Power Mosfet Transistor MOSFETs Silicon N-Channel MOS

Absolute Maximum Ratings (Note) (Ta = 25℃ unless otherwise specified)

Characteristics	Symbol	Rating	Unit
Drain-source voltage	V_DSS	600	V
Gate-source voltage	V_GSS	±30	V
Drain current (DC) (Note 1)	I_D	9.7	A
Drain current (pulsed) (Note 1)	I_DP	38.8	A
Power dissipation (Tc = 25℃)	P_D	80	W
Single-pulse avalanche energy (Note 2)	E_AS	121	mJ
Avalanche current	I_AR	2.5	A
Reverse drain current (DC) (Note 1)	I_DR	9.7	A
Reverse drain current (pulsed) (Note 1)	I_DRP	38.8	A
Channel temperature	Tch	150	℃
Storage temperature	Tstg	-55 to 150	℃

Note: Using continuously under heavy loads (e.g. the application of high temperature/current/voltage and the significant change in temperature, etc.) may cause this product to decrease in the reliability significantly even if the operating conditions (i.e. operating temperature/current/voltage, etc.) are within the absolute maximum ratings.

Please design the appropriate reliability upon reviewing the Toshiba Semiconductor Reliability Handbook ("Handling Precautions"/"Derating Concept and Methods") and individual reliability data (i.e. reliability test report and estimated failure rate, etc).

Note

1: Ensure that the channel temperature does not exceed 150℃. Note

2: VDD = 90 V, Tch = 25℃ (initial), L = 33.9 mH, RG = 25 Ω, IAR = 2.5 A
