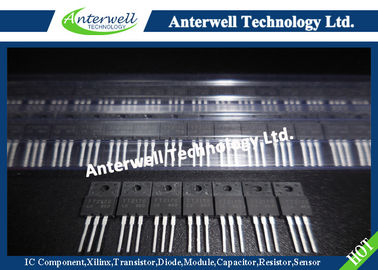

TT2170LS 3 Pin Transistor Color TV Horizontal Deflection Output Applications

: Large Image : TT2170LS 3 Pin Transistor Color TV Horizontal Deflection Output Applications

Product Details:

Place of Origin:	original factory
Brand Name:	Anterwell
Certification:	new & original
Model Number:	TT2170LS

Payment & Shipping Terms:

Minimum Order Quantity:	10pcs
Price:	Negotiate
Packaging Details:	Please contact me for details
Delivery Time:	1 day
Payment Terms:	T/T, Western Union, Paypal
Supply Ability:	8500pcs

Contact Now

Detailed Product Description

Collector-to-Base Voltage:	1500 V	Collector-to-Emitter Voltage:	800 V
Emitter-to-Base Voltage:	5 V	Collector Current:	5 A
Collector Current (Pulse):	12 A	Junction Temperature:	150 °C
Highlight:	multi emitter transistor , silicon power transistors

TT2170LS

Color TV Horizontal Deflection Output Applications

Features

• High speed.

• High breakdown voltage(VCBO=1500V).

• High reliability(Adoption of HVP process).

• Adoption of MBIT process.

• On-chip damper diode.

Absolute Maximum Ratings at Ta=25°C

Parameter	Symbol	Conditions	Ratings	Unit
Collector-to-Base Voltage	V_CBO		1500	V
Collector-to-Emitter Voltage	V_CEO		800	V
Emitter-to-Base Voltage	V_EBO		5	V
Collector Current	I_C		5	A
Collector Current (Pulse)	I_CP		12	A
Collector Dissipation	P_C		2.0	W
Collector Dissipation	P_C	Tc=25°C	25	W
Junction Temperature	Tj		150	°C
Storage Temperature	Tstg		--55 to +150	°C

Package Dimensions

TT2170LS 3 Pin Transistor Color TV Horizontal Deflection Output Applications

Switching Time Test Circuit
