Product Details:
Payment & Shipping Terms:
|
| Collector-to-Base Voltage: | 1500 V | Collector-to-Emitter Voltage: | 800 V |
|---|---|---|---|
| Emitter-to-Base Voltage: | 6 V | Collector Current: | 8 A |
| Collector Current (Pulse): | 20 A | Junction Temperature: | 150 °C |
| Highlight: | npn smd transistor,silicon power transistors |
||

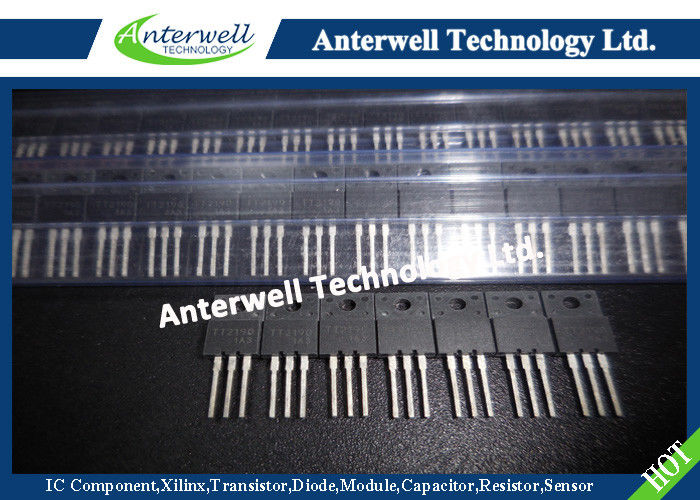

TT2190LS
Color TV Horizontal Deflection Output Applications
Features
• High speed.
• High breakdown voltage(VCBO=1500V).
• High reliability(Adoption of HVP process).
• Adoption of MBIT process.
• On-chip damper diode.
Absolute Maximum Ratings at Ta=25°C
| Parameter | Symbol | Conditions | Ratings | Unit |
|---|---|---|---|---|
| Collector-to-Base Voltage | VCBO | 1500 | V | |
| Collector-to-Emitter Voltage | VCEO | 800 | V | |
| Emitter-to-Base Voltage | VEBO | 6 | V | |
| Collector Current | IC | 8 | A | |
| Collector Current (Pulse) | ICP | 20 | A | |
| Collector Dissipation | PC | 2.0 | W | |
| Tc=25°C | 35 | W | ||
| Junction Temperature | Tj | 150 | °C | |
| Storage Temperature | Tstg | --55 to +150 | °C |
Package Dimensions
Switching Time Test Circuit
