1N5369BRLG Rectifier Diode Surmetic TM 40 Zener Voltage Regulators

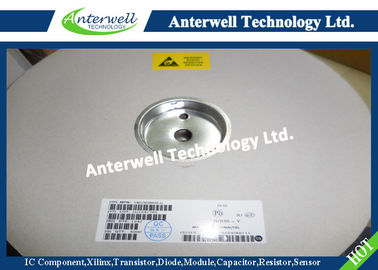

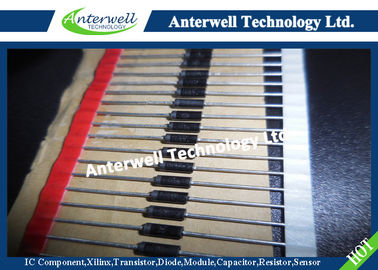

Large Image : 1N5369BRLG Rectifier Diode Surmetic TM 40 Zener Voltage Regulators

Product Details:

Place of Origin:	original factory
Brand Name:	Anterwell
Certification:	new & original
Model Number:	1N5369BRLG

Payment & Shipping Terms:

Minimum Order Quantity:	20pcs
Price:	Negotiate
Packaging Details:	Please contact me for details
Delivery Time:	1 day
Payment Terms:	T/T, Western Union, Paypal
Supply Ability:	120000pcs

Contact Now

Detailed Product Description

Power Dissipation:	5.0 W	Non Repetitive Peak Zener Dissipation (t=8.3ms):	180 W
Max. Forward Voltage Drop:	1.2 V	Max. Thermal Resistance At: 10mm Lead Length:	20 ° C/W
Operating Junction And Storage Temperature:	-55 To 175 ° C	Package:	DO-41
Highlight:	bridge rectifier circuit , signal schottky diode

5.0W Zener Diodes

1N5333B – 1N5388B

Features

• Glass passivated junction

• Complete voltage range 3.3 to 200V

• High peak reverse power dissipation

• High reliability

• Low leakage current

• RoHS Compliant

Mechanical Data

Case:	Molded plastic black body,1.5KE
Epoxy:	Plastic package has UL flammability 94V-0
Lead:	Plated axial leads, solderable per MIL-STD-750, Method 2026
Polarity:	Color band denotes cathode end
Weight:	0.045 ounce, 1.2 grams

Maximum Ratings (T_Ambient=25ºC unless noted otherwise)

Symbol	Description	Value	Unit	Conditions
P_D	Power Dissipation	5.0	W	TA=75 °C
P_ZSM	Non Repetitive Peak Zener Dissipation (t=8.3ms)	180	W
V_F	Max. Forward Voltage Drop	1.2	V	IF=3.0A
R_thj-a	Max. Thermal Resistance at: 10mm Lead Length	20	° C/W
T_J,T_STG	Operating Junction and Storage Temperature Range	-55 to 175	° C

Dimensions in inch (mm)

1N5369BRLG Rectifier Diode Surmetic TM 40 Zener Voltage Regulators
