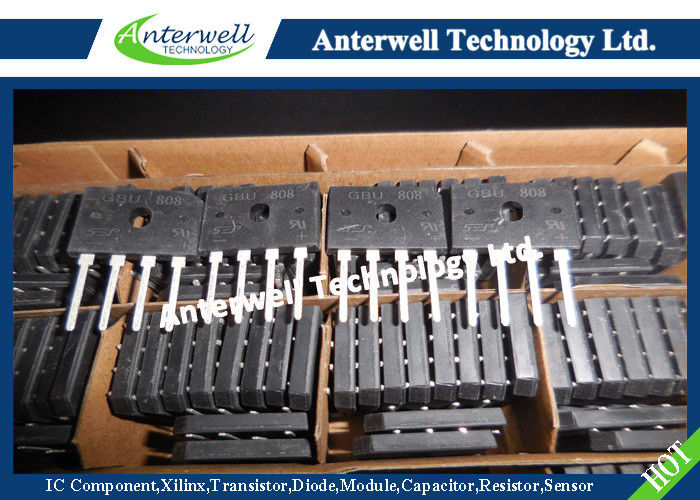

GBU808 Rectifier Diode 8.0A GLASS PASSIVATED BRIDGE RECTIFIER

: Large Image : GBU808 Rectifier Diode 8.0A GLASS PASSIVATED BRIDGE RECTIFIER

Product Details:

Place of Origin:	original factory
Brand Name:	Anterwell
Certification:	new & original
Model Number:	GBU808

Payment & Shipping Terms:

Minimum Order Quantity:	20pcs
Price:	Negotiate
Packaging Details:	Please contact me for details
Delivery Time:	1 day
Payment Terms:	T/T, Western Union, Paypal
Supply Ability:	10000pcs

Contact Now

Detailed Product Description

Peak Repetitive Reverse Voltage:	800 V	Working Peak Reverse Voltage:	800 V
DC Blocking Voltage:	800 V	RMS Reverse Voltage:	560 V
Typical Total Capacitance Per Element:	130 PF	Operating And Storage Temperature:	-55 To +150℃
Highlight:	diode rectifier circuit , signal schottky diode

GBU8005 - GBU810

8.0A GLASS PASSIVATED BRIDGE RECTIFIER

Features

• Glass Passivated Die Construction

• High Case Dielectric Strength of 1500VRMS

• Low Reverse Leakage Current

• Surge Overload Rating to 200A Peak

• Ideal for Printed Circuit Board Applications

• UL Listed Under Recognized Component Index, File Number E94661

• Lead Free Finish, RoHS Compliant (Note 4)

Mechanical Data

• Case: GBU

• Case Material: Molded Plastic. UL Flammability Classification Rating 94V-0

• Moisture Sensitivity: Level 1 per J-STD-020C

• Terminals: Finish Tin. Solderable per MIL-STD-202, Method 208

• Polarity: Marked on Body

• Mounting: Through Hole for #6 Screw

• Mounting Torque: 5.0 Inch-pounds Maximum

• Ordering Information: See Last Page

• Marking: Date Code and Type Number

• Weight: 6.6 grams (approximate) Character

GBU808 Rectifier Diode 8.0A GLASS PASSIVATED BRIDGE RECTIFIER

Maximum Ratings and Electrical Characteristics @ T_A = 25℃ unless otherwise specified

Single phase, 60Hz, resistive or inductive load.

For capacitive load, derate current by 20%.

Characteristic	Symbol	GBU 8005	GBU 801	GBU 802	GBU 804	GBU 806	GBU 808	GBU 810	Unit
Peak Repetitive Reverse Voltage Working Peak Reverse Voltage DC Blocking Voltage	V_RRM V_RWM V_R	50	100	200	400	600	800	1000	V
RMS Reverse Voltage	V_R(RMS)	35	70	140	280	420	560	700	V
Average Forward Rectified Current (Note 1) @ T_C = 100℃	I_(AV)	8.0							A
Non-Repetitive Peak Forward Surge Current 8.3ms single half sine-wave superimposed on rated load	I_FSM	200							A
Forward Voltage (per element) @ I_F = 4.0A	V_FM	1.0							V
Peak Reverse Current @ T_C = 25℃ at Rated DC Blocking Voltage @ T_C = 125℃	I_R	5.0 500							μA
I ²t Rating for Fusing (t < 8.3ms) (Note 2)	I ²t	166							A²s
Typical Total Capacitance per Element (Note 3)	C_T	130							pF
Typical Thermal Resistance Junction to Case (Note 1)	R_θJC	2.2							℃/W
Operating and Storage Temperature Range	T_j, T_STG	-55 to +150							℃

Notes:

1. Unit mounted on 50 x 50 x 1.6mm copper plate heatsink.

2. Non-repetitive, for t > 1.0ms and < 8.3ms.

3. Per element, measured at 1.0MHz and applied reverse voltage of 4.0V DC.

4. RoHS revision 13.2.2003. Glass and High Temperature Solder Exemptions Applied, see EU Directive Annex Notes 5 and 7.
